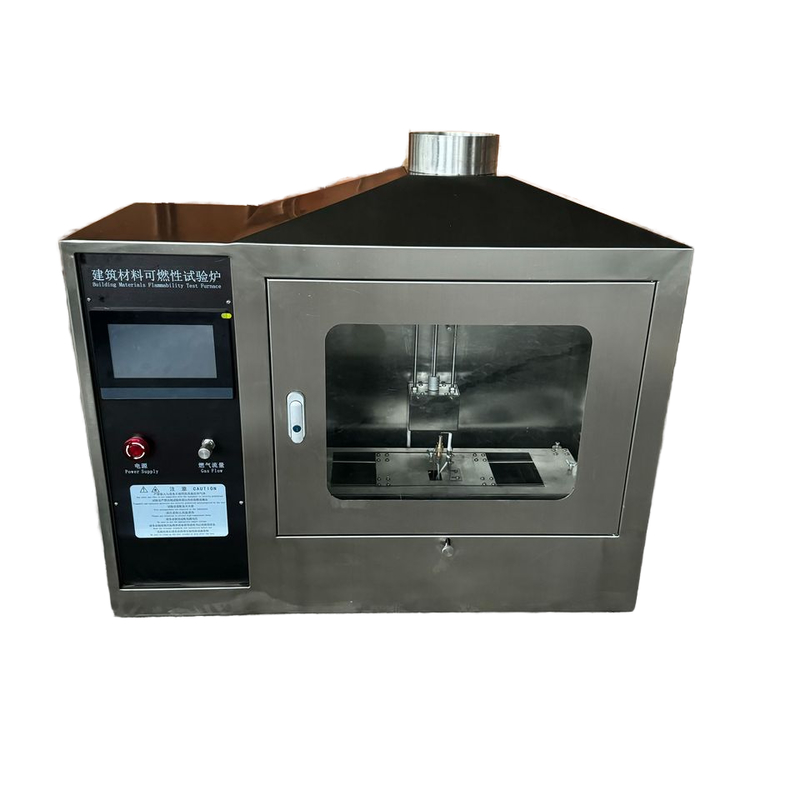

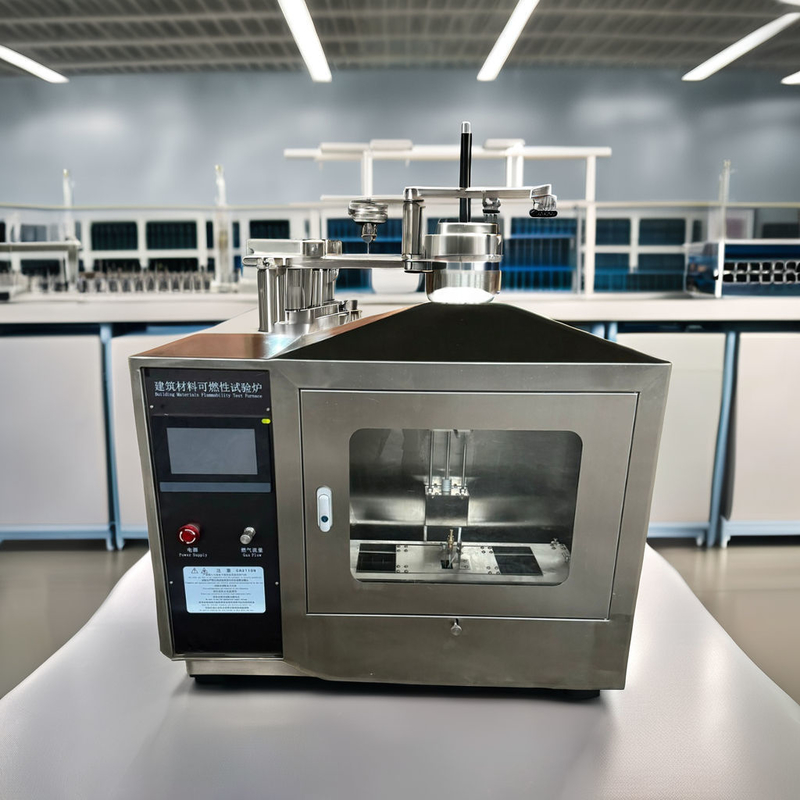

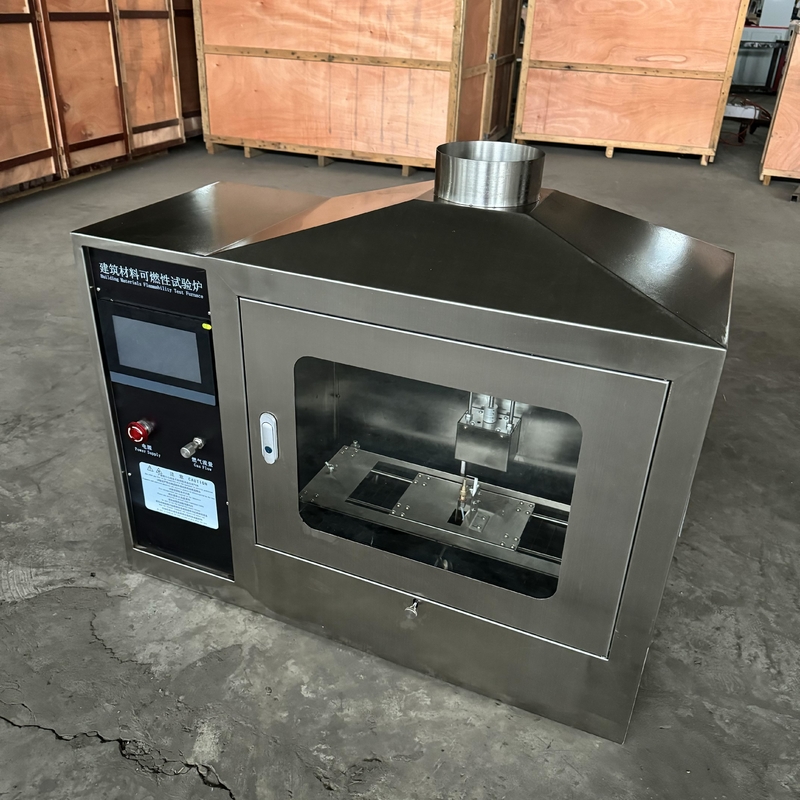

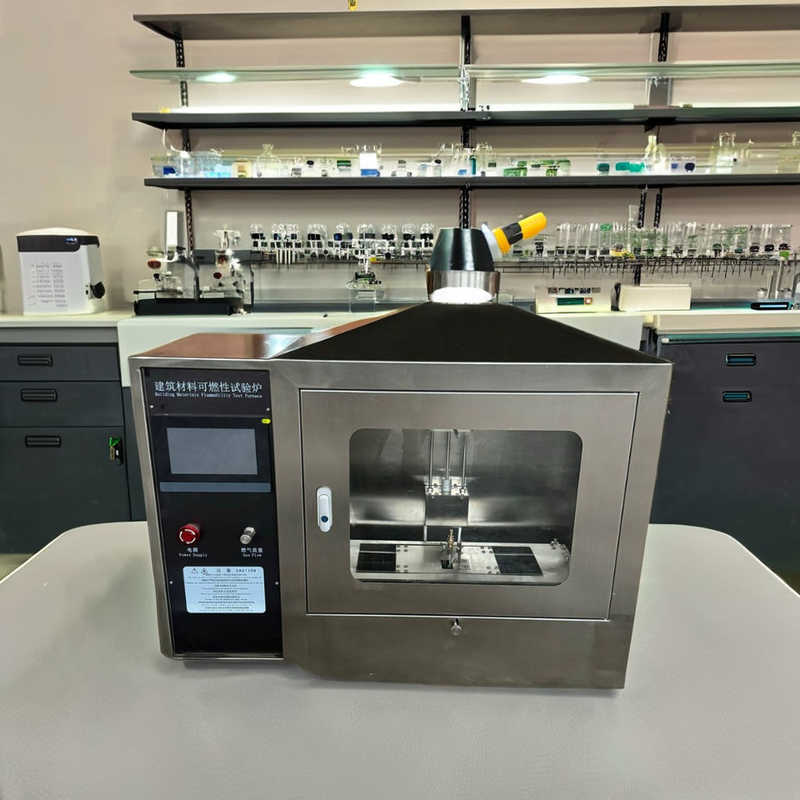

Name: Building Materials Ignitability Flammability Tester for Single Flame Source Test
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY510
Price: 25,000.00 USD
Availability: InStock

Huis > producten > Brandbaarheid het Testen Materiaal >

Building Materials Ignitability Flammability Tester for Single Flame Source Test

flammability tester for building materials

single flame source flammability tester

building materials ignitability testing equipment

Plaats van herkomst:

China

Merknaam:

YUYANG

Certificering:

Modelnummer:

YY510

Neem contact met ons op

Verzoek om een Citaat

Building Materials Ignitability Flammability Tester for Single Flame Source Test

Productgegevens

Luchtsnelheid rookkanaal:

0.7m/s slechts op voorwaarde van van de brander het branden en trekking open kap

Stroomvoorziening:

AC220V ± 10%, 50Hz

Testtunneloven:

3. Lengte 7,62 m, open uiteinde dwarsdoorsnede 0,45 m * 0,3 m, FireBrick Max Temperatuur 2500 ℃

Brander hoek:

45 °

Gasbron:

> 95% propaangas; （Gebruiker moet voor zichzelf zorgen）

Gasdruk:

10kpa~50kpa

Markeren:

flammability tester for building materials

single flame source flammability tester

building materials ignitability testing equipment

Betaling en verzendvoorwaarden

Min. bestelaantal

Instellen/sets

Prijs

pending

Levertijd

Betalingscondities

L/c, t/t

Levering vermogen

Verwante producten

Plastics Smoke Generation Optical Density Test Apparatus ASTM E662 ISO 5659-2 Smoke Density Testing Equipment

Vind de beste prijs

YYF030 Plastics Smoke Generation Optical Density Test Apparatus

Vind de beste prijs

Surface Flame Spread Test Apparatus BS 476 Part 7 Fire Testing Equipment for Building Material Flammability Evaluation

Vind de beste prijs

Low Voltage Tracking Test Apparatus IEC 60112 ASTM D3638 CTI PTI Testing Equipment for Insulating Materials

Vind de beste prijs

Neem contact met ons op

8613265296009

sales13@yuyangtest.com

86-769-26622869

Contact opnemen

Productbeschrijving

Building Materials Ignitability Flammability Tester for Single Flame Source Test Ignitability test, also called single-flame source test. Test apparatus corresponds to standard EN ISO 11925-2. Test results of the building structure can be classified according to standard 13501-1. The dimensions of the test specimens shall be (250) mm long by (90) mm wide. 45°-tilted burner is advanced horizontally until the flame (length 20 mm) reaches the pre-set contact point with the test
