Name: ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: JJF008
Price: 25,000.00 USD
Availability: InStock

Huis > producten > Brandbaarheid het Testen Materiaal >

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine

ISO 9239-1 flooring radiant heat tester

ASTM E 846 flammability test machine

radiant heat flux test apparatus

Plaats van herkomst:

Guangdong, China

Merknaam:

YUYANG

Certificering:

Modelnummer:

JJF008

Neem contact met ons op

Verzoek om een Citaat

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus Tester Machine

Productgegevens

Warmtefluxbereik:

0-15 Kw/m2

Nauwkeurigheid van de warmteflux:

± 0,2 kW/m2

Uitlaatsnelheid:

2,5 ± 0,2 m/s

Vlamhoogte:

60-120 mm verstelbaar

Ontstekingssysteem:

Hoogspanningselektronica

Gasdebiet:

0,026 ± 0,002 L/S

Totaal vermogen:

2 kW

Voeding:

AC 220V, 50Hz

Stralende energiestroom:

1,1-10,9 kW/m2

Bereik warmtefluxmeter:

0-50 kW/m2

Emissiviteit op het oppervlak:

ε=0,95±0,05

Bedrijfsspanning:

230 V, 10 A

Bedrijfstemperatuur:

10°C tot 35°C

Stralende paneelhoek:

30º

Gasvoorziening:

met een vermogen van niet meer dan 10 kW

Markeren:

ISO 9239-1 flooring radiant heat tester

ASTM E 846 flammability test machine

radiant heat flux test apparatus

Betaling en verzendvoorwaarden

Min. bestelaantal

Verwante producten

BS 476 Deel 7 Gebouwmateriaal oppervlakte vlamverspreidingstestapparaat Elektronisch

Vind de beste prijs

16 CFR Part 1611 SPI Flammability Testing Equipment Electronic Fire Testing Machine

Vind de beste prijs

ISO 834 BS 476 Deel 20&22 Vlamwerendheidstestoven voor bouwmaterialen en constructies

Vind de beste prijs

Cone Calorimeter Warmteafgifte Snelheid Ontvlambaarheid Testapparatuur Elektronische Machine Tester

Vind de beste prijs

Neem contact met ons op

+86-13825722581

jackson.sun@yuyangtest.com

86-769-26622869

Contact opnemen

Productbeschrijving

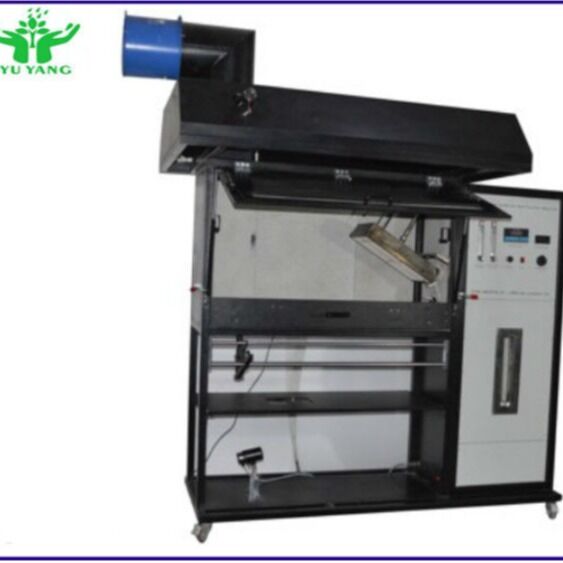

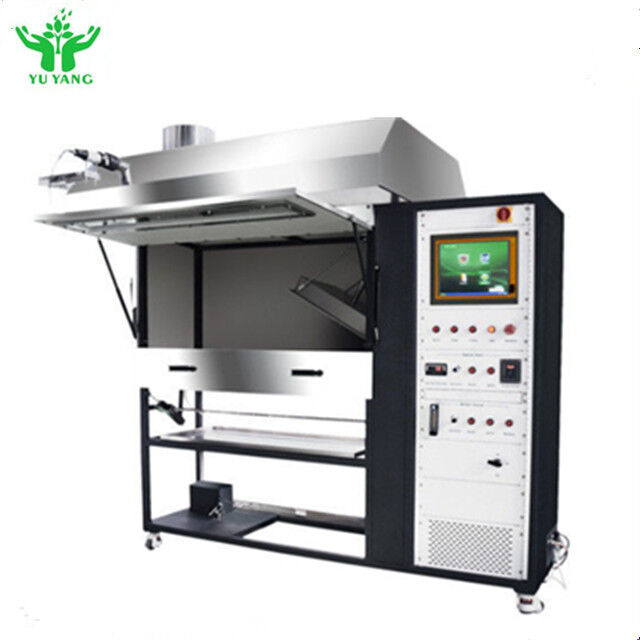

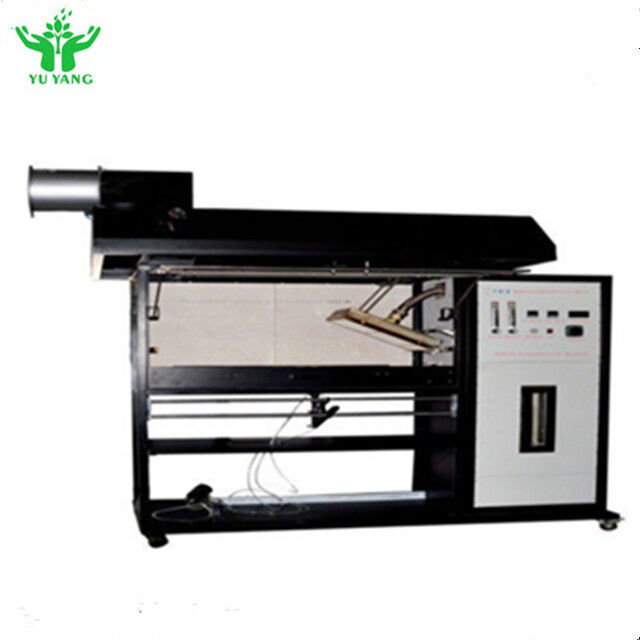

ISO 9239-1 ASTM E 846 Flooring Radiant Heat Flux Test Apparatus

This professional testing machine measures the critical radiant flux and flame spread characteristics of flooring materials according to international fire safety standards.

Product Overview

The ISO 9239 Radiant Flooring Panel test is the cornerstone of flooring materials reaction to fire tests in the Euroclass system. The apparatus measures flame spread of samples under thermal exposure using a radiant heat ignition source, simulating fire conditions that radiate onto flooring in adjacent rooms or corridors.

This flooring radiant panel test apparatus is also compliant with ASTM E648 and DIN 4102 Part 14 standards.

Compliance Standards

• GB/T 11785 - Flooring combustion performance measurement with radiant heat source
• ISO 9239-1:2002 - Flooring combustion performance determined with radiant heat resource
• ASTM E648 - Critical radiant flux of floor-covering systems using radiant heat
• ASTM E970 - Critical radiant flux of exposed attic floor insulation using radiant heat energy
• NFPA 253 - Critical radiant flux of floor covering systems using radiant heat energy

Key Features

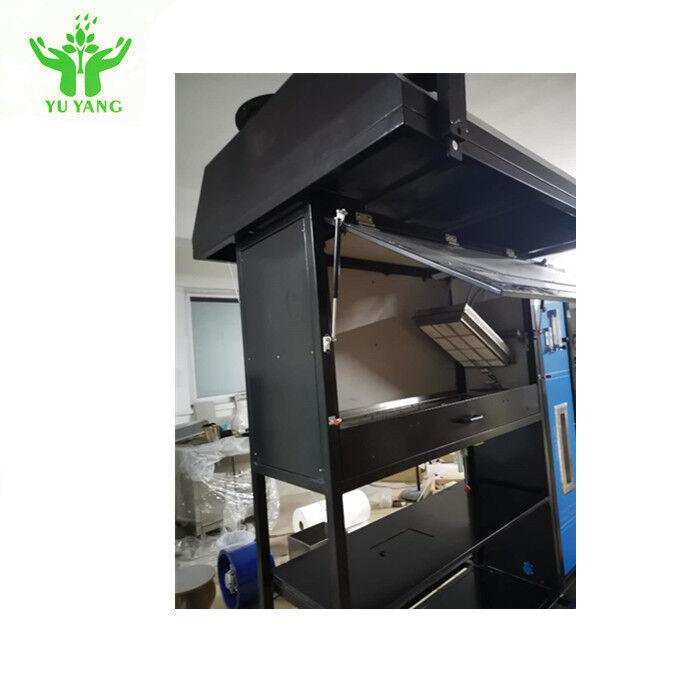

Insulated test chamber with calcium silicate insulation board and temperature-resistant observation window
Stainless steel sample support assembly on sliding platform for safe and easy sample loading

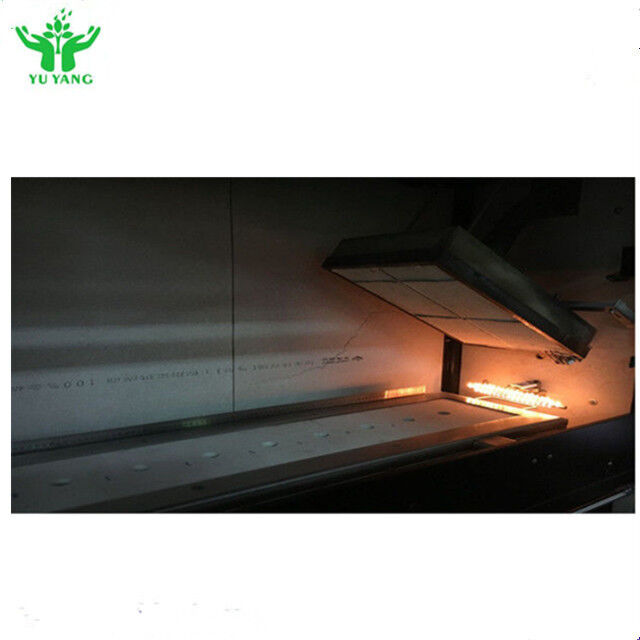

Gas-fuelled radiant panel inclined at 30° directed at horizontally mounted floor covering specimens
Radiant energy flux distribution from 10.9 kW/m² to 1.1 kW/m²
Dummy calibration specimen with holder and calibrated heat flux meter
Measures distance burned until flame-out, converted to equivalent critical radiant flux in kW/m²
Heat flux meter range: 0-50 kW/m² with surface emissivity ε=0.95±0.05
Integrated smoke measuring system according to DIN 50055

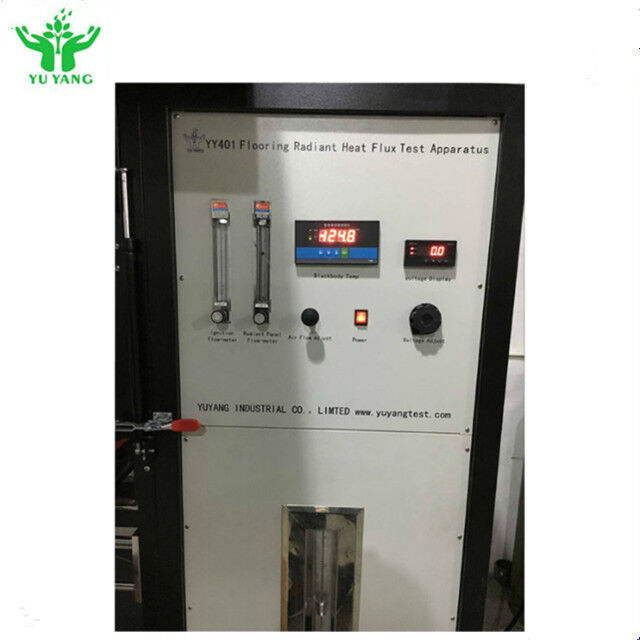

Control rack for convenient observation and operation during setup and calibration
Automatic ignition of radiant panel with safety cut-out
Automatic moving T-type ignition burner
Stainless steel hood with smoke measurement ports

Installation Requirements

Parameter	Specification
Electrical	230 volts Nominal, 10 Amps
Ambient Temperature	Operating range: 10°C to 35°C
Gas Supplies	Propane and air compressor

Product Images

Manufacturer Information

DONGGUAN YUYANG INSTRUMENT CO., LTD is located in Wanjiang District, Dongguan City, Guangdong Province, China - a region known for its prosperous industry and convenient transportation.

We are a high-tech enterprise specializing in developing and manufacturing Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment and related instruments.

Decades of research and development have established YUYANG as a leader in high-quality, cost-effective testing equipment. Our products are widely used across multiple industries including scientific institutions, colleges, inspection agencies, automotive, electronics, electrical, lithium battery, LED, photoelectric, mobile devices, plastics, rubber, display technology, telecommunications, chemicals, aerospace, building materials, wire and cable, toys, furniture, and textiles.

All YUYANG testing equipment are designed according to international standards including ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA, and CEN.

DONGGUAN YUYANG INSTRUMENT CO., LTD looks forward to cooperating with customers worldwide and welcomes inquiries about our products or custom orders.
