IEC 60754-1 Cable Halogen Acid Gas Release Test Machine

IEC 60754-1 halogen test machine

cable gas release tester

flammability testing equipment with warranty

Plaats van herkomst:

Guangdong, China

Merknaam:

YUYANG

Certificering:

Neem contact met ons op

Verzoek om een Citaat

IEC 60754-1 Cable Halogen Acid Gas Release Test Machine

Productgegevens

Nauwkeurigheid:

±1%

Stroom:

500W

Beschermingsklasse:

ip55

Spanning:

110V, 220V

Grootte van de controlekamer:

400 (W) *400 (D) *240 (H) MM

Apparaatgrootte testen:

1500 (W) *450 (D) *400 (H) MM

Omgevingstemperatuur:

10°C tot 35°C

Timer:

De keer van CEI 60754-1 of van CEI 60754-2 metingsapparaat

Gewicht:

80 kg

Voeding:

AC220V 50HZ, 25A

Geleidbaarheidsbereik:

0,01uS/mm ~ 100uS/mm

Grootte van de monsterkamer:

1 liter

Lengte buisoven:

500 ~ 600 mm

Diameter buisoven:

40 ~ 60 mm

grootte van een verbrandingsboot:

lengte 45 ~ 100 mm, breedte 12 ~ 30 mm, diepte 5 ~ 10 mm

Markeren:

IEC 60754-1 halogen test machine

cable gas release tester

flammability testing equipment with warranty

Betaling en verzendvoorwaarden

Min. bestelaantal

Verwante producten

BS 476 Deel 7 Gebouwmateriaal oppervlakte vlamverspreidingstestapparaat Elektronisch

Vind de beste prijs

16 CFR Part 1611 SPI Flammability Testing Equipment Electronic Fire Testing Machine

Vind de beste prijs

ISO 834 BS 476 Deel 20&22 Vlamwerendheidstestoven voor bouwmaterialen en constructies

Vind de beste prijs

Cone Calorimeter Warmteafgifte Snelheid Ontvlambaarheid Testapparatuur Elektronische Machine Tester

Vind de beste prijs

Neem contact met ons op

+86-13825722581

jackson.sun@yuyangtest.com

86-769-26622869

Contact opnemen

Productbeschrijving

IEC 60754-1 Cable Halogen Acid Gas Release Test Machine

The Halogen Acid Gas Tube Furnace is designed to test the acidity of gases released during combustion from cable or optical cable component materials. This equipment determines the acidic properties of cable materials and measures halogen acid gas concentration, pH values, and conductivity levels.

Compliance Standards

GB/T 17650.1~2-1998, IEC 60754-1/2-1994, EN 50305, BS 6853, GB/T 19666-2005, GA 306.2-2007, UL 2556-2007

Key Features

Optimized stainless steel construction with logical layout for easy operation
Tube furnace with 500-600mm effective length and 40-60mm inner diameter
Equipped with imported US thermocouple for precise temperature measurement
Combustion boat dimensions: 45-100mm length, 12-30mm width, 5-10mm depth
Conductivity measuring range: 0.01μS/mm to 100μS/mm
Electronic temperature control system with intelligent furnace temperature management
Dual gas collection bottles and 1-liter sample chamber

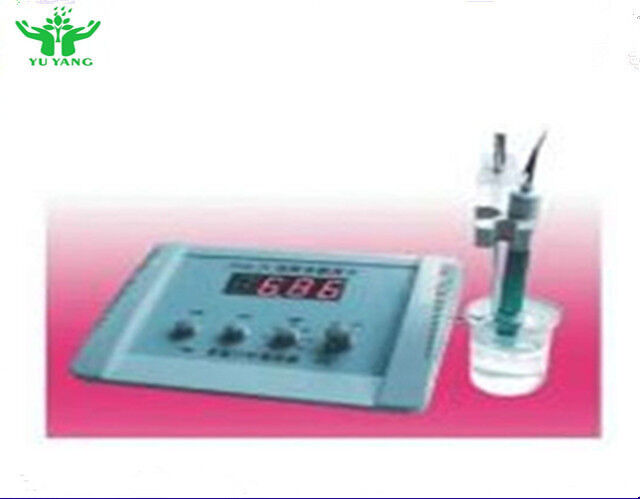

Integrated pH value and conductivity detector with electronic display
Corrosion-resistant silicon dioxide fire pipeline with air flow meter
Air filtration through activated carbon and silicone drying system
Pyrex pipeline for easy sample insertion and damage protection
Automatic combustion boat movement for intelligent testing
Dual test mode selection (IEC 60754-1 & IEC 60754-2)
Temperature alarm system to prevent overheating
Integrated timer for precise test duration measurement
Storage drawer for conductivity meters, pH meters, and accessories
Real-time furnace core temperature indicator
Permanent magnetic stirrer for gas distribution in distilled water

Technical Specifications

Timer	IEC 60754-1 or IEC 60754-2 time measurement device
Test Device Dimensions	1500(W) × 450(D) × 400(H) mm
Control Chamber Dimensions	400(W) × 400(D) × 240(H) mm
Power Supply	AC220V 50HZ, 25A
Sample Chamber Capacity	1 Liter
Weight	80KG

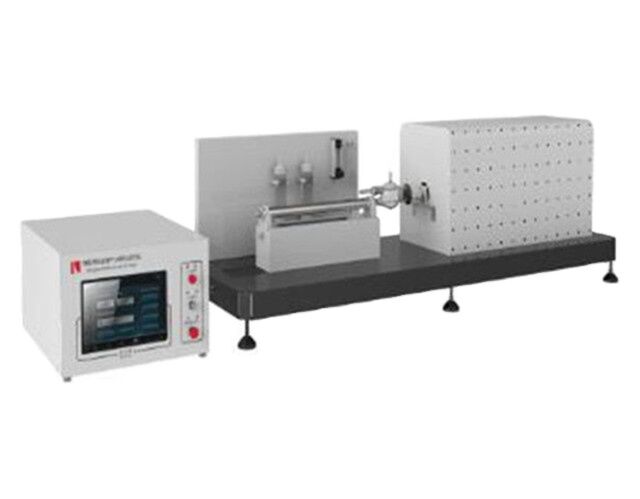

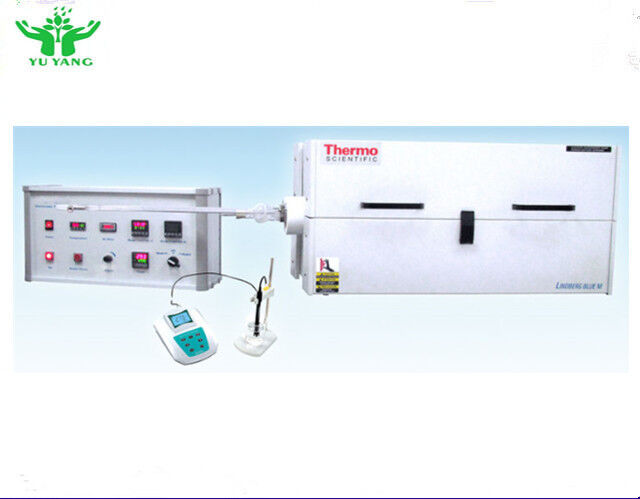

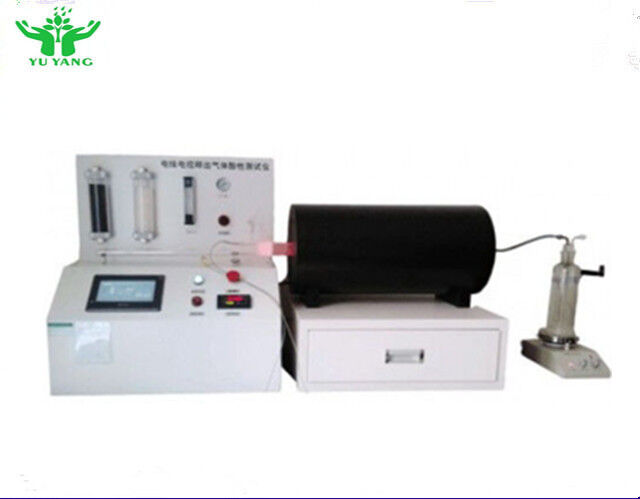

Product Images
