10kN 20kN 50kN Dual Column Universal Tensile Testing Machine for Metal Rubber Plastic Steel Wire

10kN 20kN 50kN Dual Column Universal Tensile Testing Machine for Metal Rubber Plastic Steel Wire

dual column tensile testing machine

universal tensile tester for metal

50kN tensile testing machine

Plaats van herkomst:

China

Merknaam:

YUYANG

Certificering:

CE

Modelnummer:

YYS-5D

Neem contact met ons op
Verzoek om een Citaat
Productgegevens
Maximale belasting:
5KN
Nauwkeurigheid laden:
Graad 1 of Graad 0,5
Testbereik:
2-100%FS of 0,4-100%FS
Laadresolutie:
1/500000FS
Testcontrolemodus:
3 gesloten luscontrole, spanning, spanning en verplaatsing
Trek-/compressieruimte:
800 mm
Testbreedte:
300 mm
Misvormingsnauwkeurigheid:
≤ ± 1%
Verplaatsingsresolutie:
0,01 mm
Crosshead snelheidsbereik:
0.001·500 mm/min
Algemene afmetingen (L*W*H):
420*300*1500mm
Stroom:
0.3Kw
Voedingsspanning:
1P 220V±10%,50-60HZ,500W
NW:
90 kg
Bedrijfstemperatuur:
0 tot +38°C (+32 tot +100°F)
Vochtigheidsbereik:
10% aan Non-condensing 90%
Markeren:

dual column tensile testing machine

,

universal tensile tester for metal

,

50kN tensile testing machine

Betaling en verzendvoorwaarden
Min. bestelaantal
1 Instellen
Prijs
pending
Verpakking Details
multiplex doos
Levertijd
5-10 werkdagen
Betalingscondities
T/T, L/C, Western Union
Levering vermogen
200 sets per maand
Productbeschrijving
10kN 20kN 50kN Dual Column Universal Tensile Testing Machine
Professional dual column universal tensile testing machine designed for testing metals, rubber, plastics, steel wire, and various materials with precision and reliability.

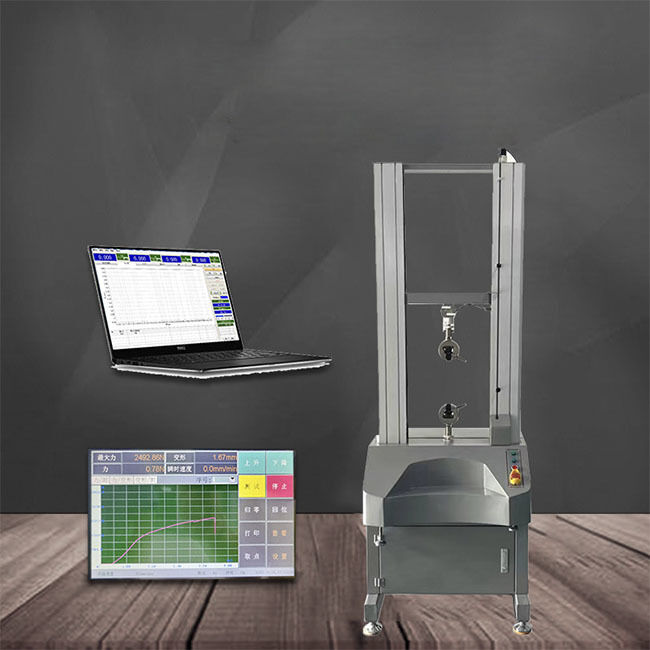

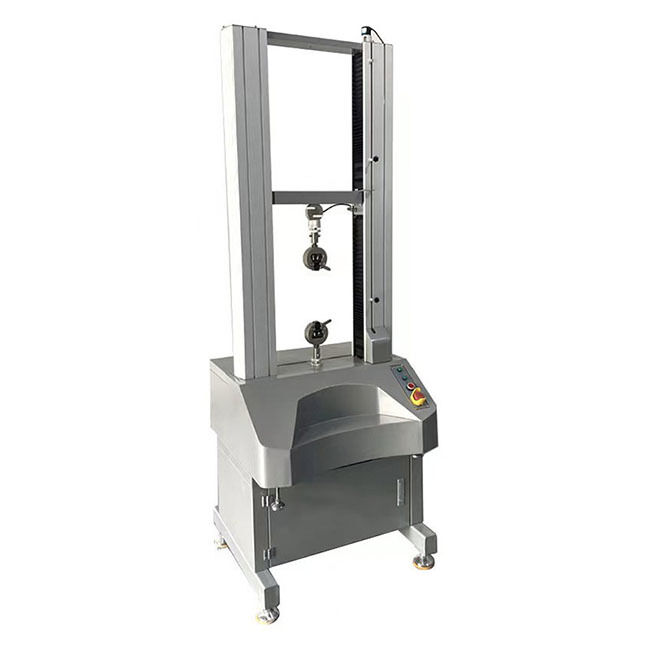

Product Images
10kN 20kN 50kN Dual Column Universal Tensile Testing Machine for Metal Rubber Plastic Steel Wire 0 10kN 20kN 50kN Dual Column Universal Tensile Testing Machine for Metal Rubber Plastic Steel Wire 1 10kN 20kN 50kN Dual Column Universal Tensile Testing Machine for Metal Rubber Plastic Steel Wire 2 10kN 20kN 50kN Dual Column Universal Tensile Testing Machine for Metal Rubber Plastic Steel Wire 3 10kN 20kN 50kN Dual Column Universal Tensile Testing Machine for Metal Rubber Plastic Steel Wire 4 10kN 20kN 50kN Dual Column Universal Tensile Testing Machine for Metal Rubber Plastic Steel Wire 5
Technical Specifications
Control Mode Digital Display System
Model YYS-5D YYS-10D YYS-20D YYS-30D YYS-50D YYS-100D
Max Load 5KN 10KN 20KN 30KN 50KN 100KN
Load Accuracy Grade 1
Test Range 2-100%FS
Tensile/Compression Space 800mm 789mm 750mm 650mm -
Test Width 300mm 315mm 400mm 410mm -
Deformation Accuracy ≤±1%
Displacement Resolution 0.01m
Crosshead Speed Range 0.001~500mm/min
Overall Dimensions (L*W*H) 420*300*1500mm 663*430*1700mm 770*500*1830mm 800*500*1950mm -
Power 0.3kw 0.75kw 1kw -
Operating Temperature 0 to +38°C (+32 to +100°F)
Humidity Range 10% to 90% non-condensing
Additional Notes
  • Extra wide and/or extra height frames are available
  • Power supply system is completely customizable
